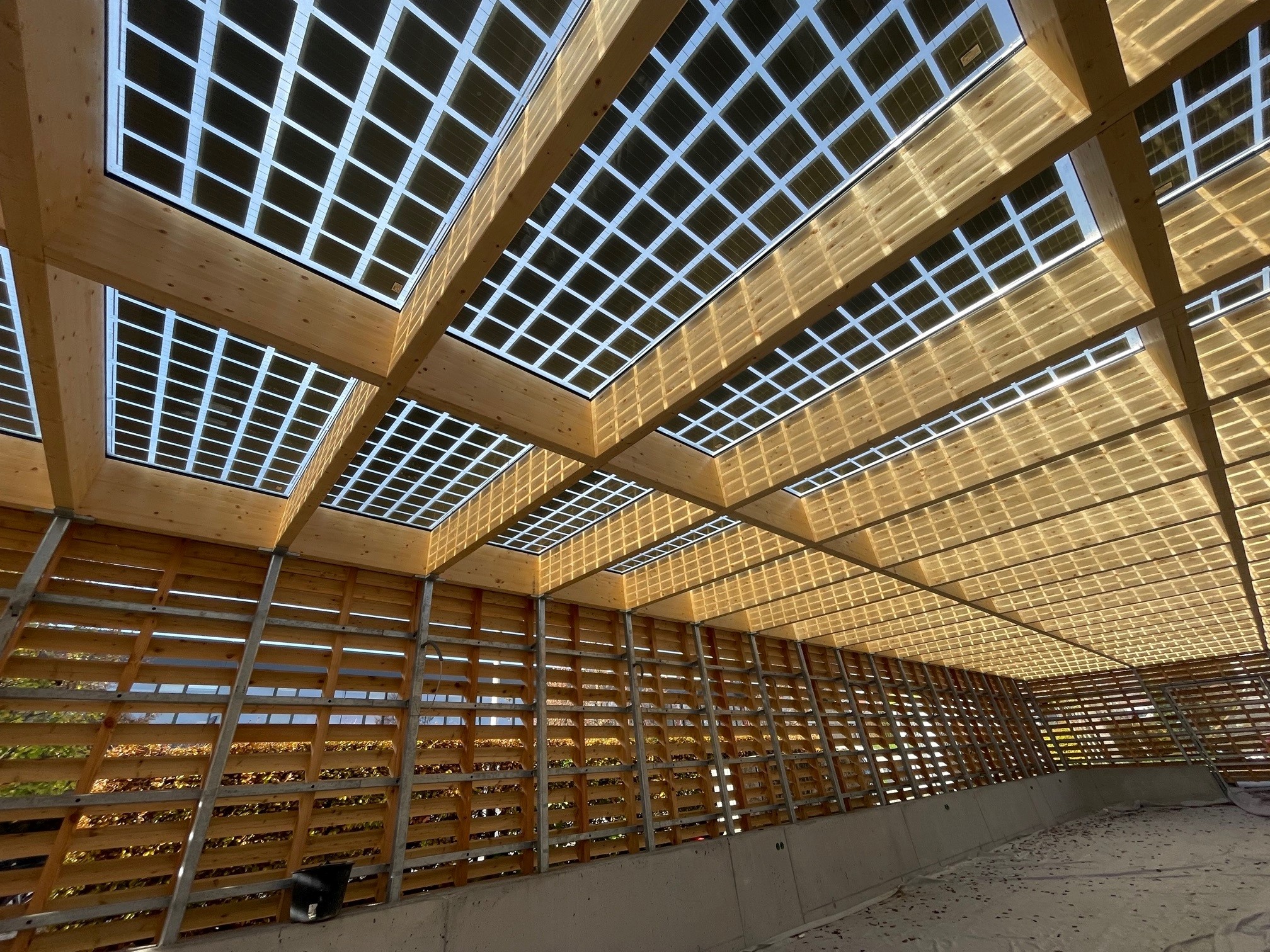

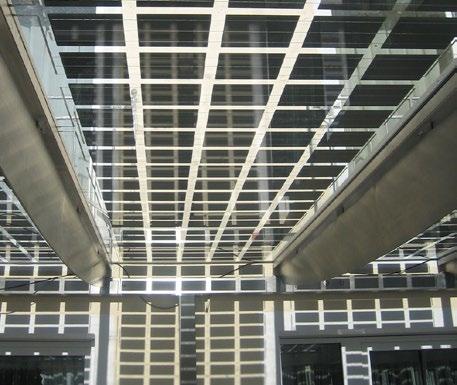

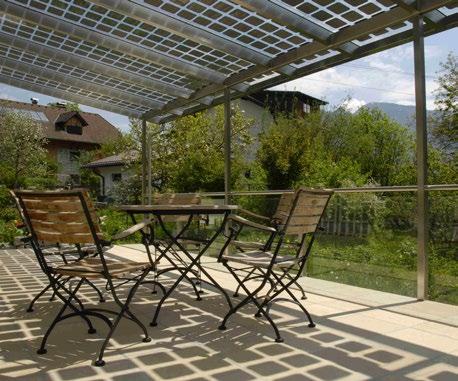

From aesthetic carports to extravagant patio roofs – roof constructions with photovoltaics give outdoor areas a special stylish touch. The freedom to vary the placement of the cells allows for unique designs, such as glazed entrance areas or canopies. The installation of semi-transparent modules in overhead glazing makes it possible to combine high performance with weather protection and a unique appearance.

Double the benefits of carports and patios with photovoltaics

In Central Europe, a south-facing roof with a 30° incline produces the highest total yield over the course of the year. But even with slightly inclined systems, such as atrium glazing or carports, you can still expect 90 % of the optimum value. When used as a carport, there is a double benefit, as parking spaces protected from the weather are created on the one hand and renewable energy can be generated on the other.

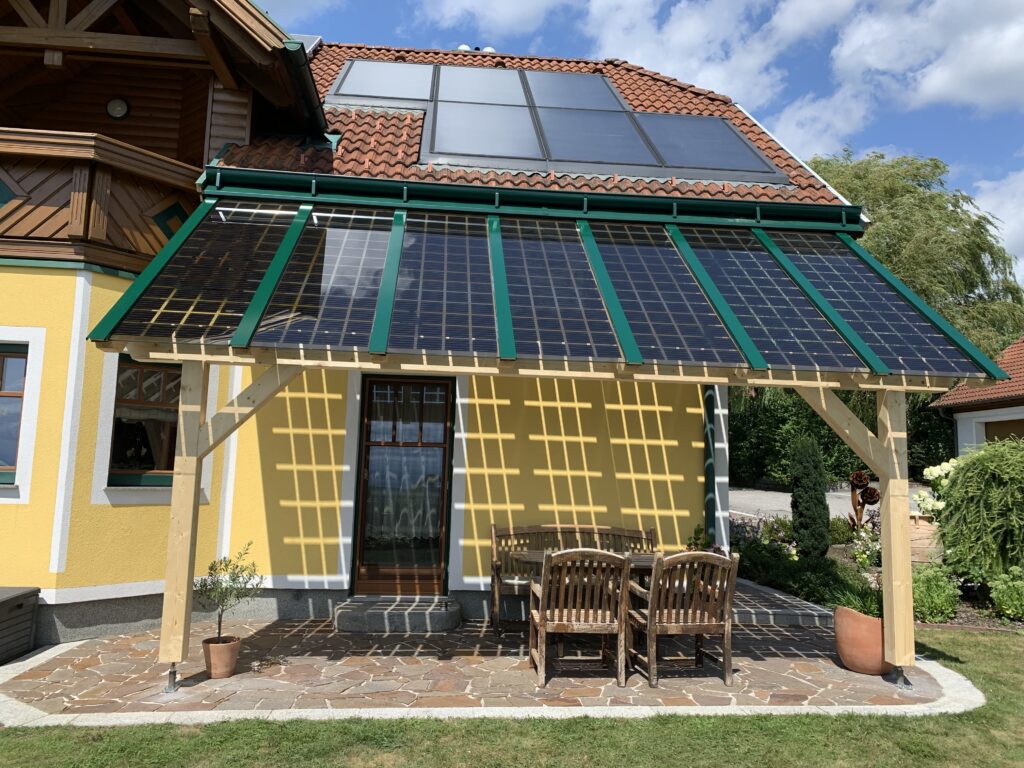

The substructure and assembly must be carried out by the customer, whereby for mounting a terrace canopy with photovoltaics there are some aspects which are mentioned below. Exemplary below is shown the mostly used mounting option, which can be used either with wooden or with aluminium-substructure:

Profiles

Mounting with profiles at the glass edges. There are rectangular as well as trapezoidal cover strips available. For this mounting option, the expected price is about 30 EUR/m excl. VAT. ↓

Between the modules:
A distance of about 25-30mm between the modules is needed for a cabeling between the panes.
